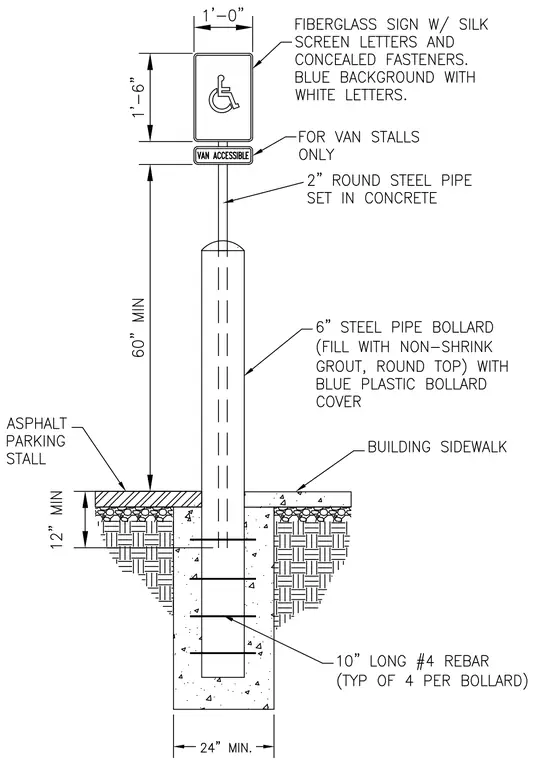

An accessible parking sign measuring one foot by one foot six inches with a blue background and white letters features concealed fasteners and a van accessible sub-sign below. The sign mounts to a two inch round steel pipe set inside a six inch steel pipe bollard filled with non-shrink grout and capped with a round top and blue plastic bollard cover. The bollard extends at least sixty inches above the adjacent asphalt parking stall and building sidewalk. It anchors into a twenty-four inch minimum diameter concrete footing with four ten inch long number four rebar dowels.
