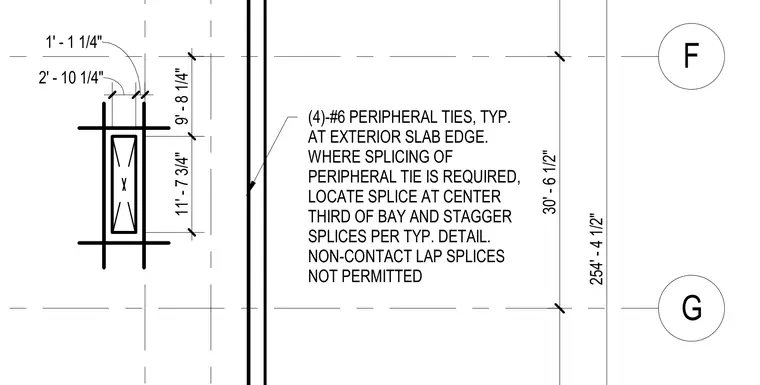

Four number six peripheral ties are detailed typically at the exterior slab edge between grid lines F and G. Where splicing of the peripheral tie is required, the splice must be located at the center third of the bay and staggered per typical detail. Non-contact lap splices are explicitly prohibited.
F G 2' - 10 1/4" 1' - 1 1/4" 9' - 8 1/4" 11' - 7 3/4" (4)-#6 PERIPHERAL TIES, TYP. AT EXTERIOR SLAB EDGE. WHERE SPLICING OF PERIPHERAL TIE IS REQUIRED, LOCATE SPLICE AT CENTER THIRD OF BAY AND STAGGER SPLICES PER TYP. DETAIL. NON-CONTACT LAP SPLICES NOT PERMITTED 30' - 6 1/2" 254' - 4 1/2"
