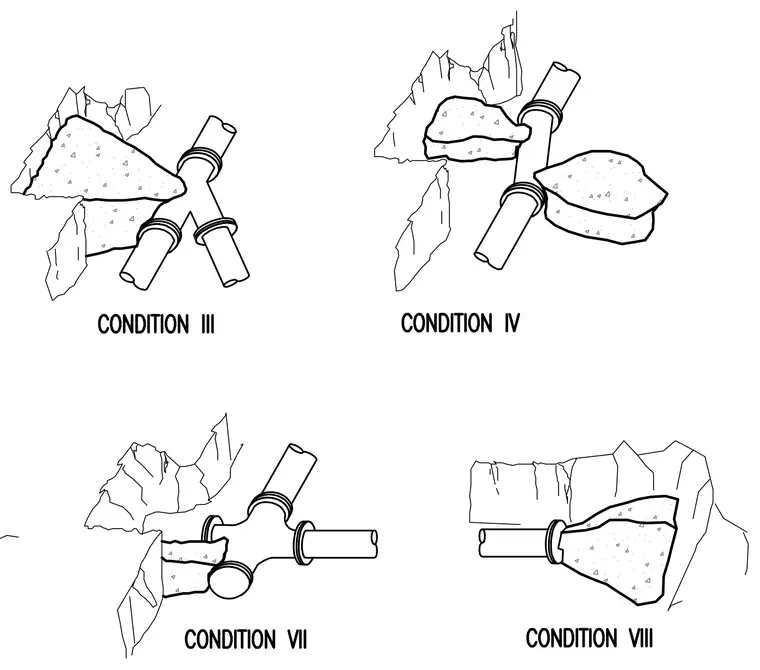

Concrete thrust blocks anchor pipe fittings and bends against soil to resist hydrodynamic forces. These isometric conditions show various configurations of concrete thrust and anchor blocks at pipe tees, crosses, and dead ends with mechanical joint restraints. The concrete pours bear directly against undisturbed soil and wrap around the pipe fittings to prevent joint separation under high internal pressure.
