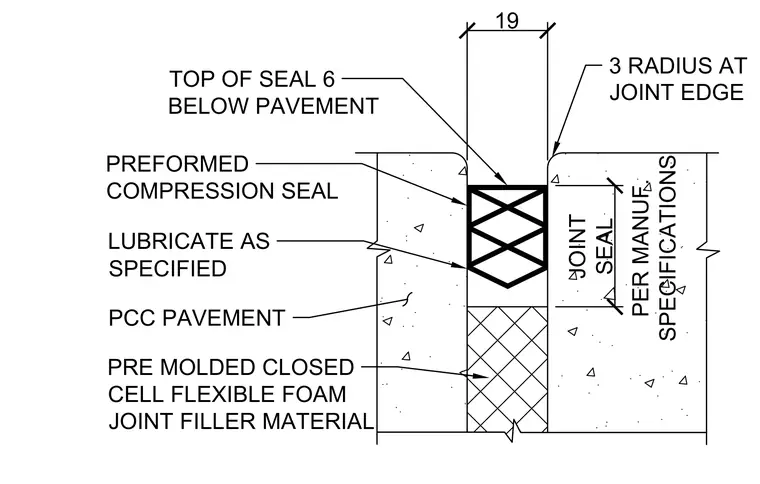

The assembly features a preformed compression seal installed six units below the pavement surface within Portland cement concrete pavement. A pre-molded closed cell flexible foam joint filler material is positioned directly beneath the compression seal. The joint edges are formed with a three-unit radius per manufacturer specifications, and the compression seal requires lubrication as specified. A nineteen-unit joint width dimension is indicated at the top of the joint.
TOP OF SEAL 6 BELOW PAVEMENT PREFORMED COMPRESSION SEAL LUBRICATE AS SPECIFIED PCC PAVEMENT PRE MOLDED CLOSED CELL FLEXIBLE FOAM JOINT FILLER MATERIAL 3 RADIUS AT JOINT EDGE PER MANUF. SPECIFICATIONS 19 JOINT SEAL
