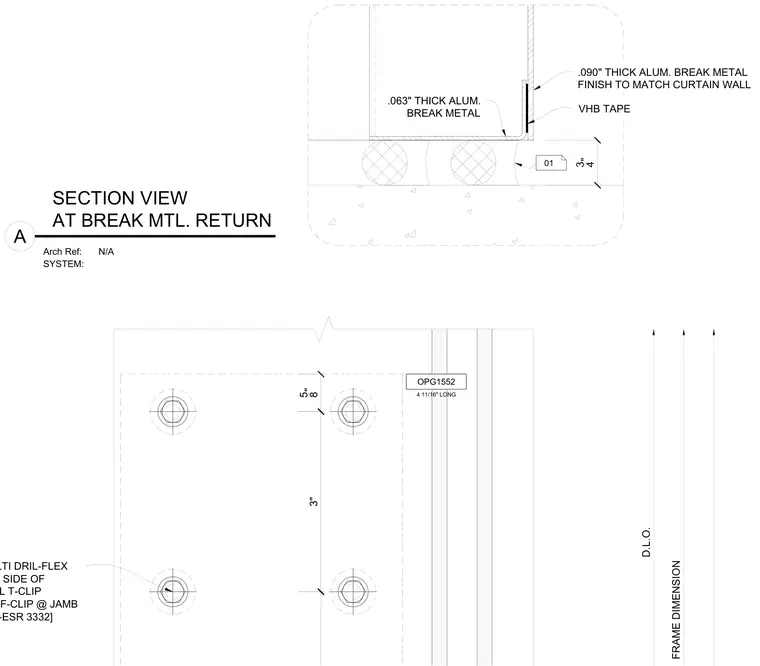

An assembly featuring a .090-inch thick aluminum break metal finish matching the curtain wall, secured with VHB tape to a .063-inch thick aluminum break metal component. The assembly anchors to a vertical T-clip and F-clip at the jamb using 1/4-20 Hilti Dril-Flex fasteners on each side per ICC-ESR 3332. Dimensions include a 3/4-inch joint space, a 5/8-inch edge distance, a 3-inch fastener spacing, and an OPG1552 component measuring 4 11/16 inches long.
D.L.O. FRAME DIMENSION 5 8 " OPG1552 4 11/16" LONG Arch Ref: SYSTEM: AT BREAK MTL. RETURN SECTION VIEW A N/A .090" THICK ALUM. BREAK METAL FINISH TO MATCH CURTAIN WALL VHB TAPE .063" THICK ALUM. BREAK METAL 01 3" 3 4 " 1/4-20 HILTI DRIL-FLEX EA. SIDE OF VERTICAL T-CLIP AT F-CLIP @ JAMB PER [ICC-ESR 3332]
