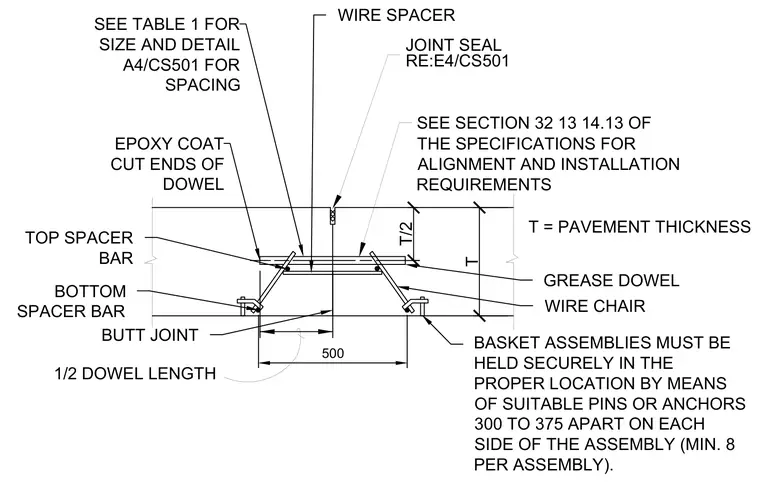

A doweled contraction joint in a concrete pavement slab is supported by a wire chair and basket assembly. The epoxy-coated dowel features cut ends and is greased to allow movement, positioned at half the pavement thickness T over two. Top and bottom spacer bars maintain the dowel alignment across the butt joint. The wire basket assembly is secured to the subgrade with pins or anchors spaced three hundred to three hundred seventy-five millimeters apart on each side. A joint seal is applied at the top surface of the pavement directly above the joint.
T = PAVEMENT THICKNESS 1/2 DOWEL LENGTH JOINT SEAL RE:E4/CS501 EPOXY COAT CUT ENDS OF DOWEL GREASE DOWEL SEE SECTION 32 13 14.13 OF THE SPECIFICATIONS FOR ALIGNMENT AND INSTALLATION REQUIREMENTS SEE TABLE 1 FOR SIZE AND DETAIL A4/CS501 FOR SPACING WIRE CHAIR BUTT JOINT WIRE SPACER TOP SPACER BAR BOTTOM SPACER BAR 500 BASKET ASSEMBLIES MUST BE HELD SECURELY IN THE PROPER LOCATION BY MEANS OF SUITABLE PINS OR ANCHORS 300 TO 375 APART ON EACH SIDE OF THE ASSEMBLY (MIN. 8 PER ASSEMBLY). T/2 T
