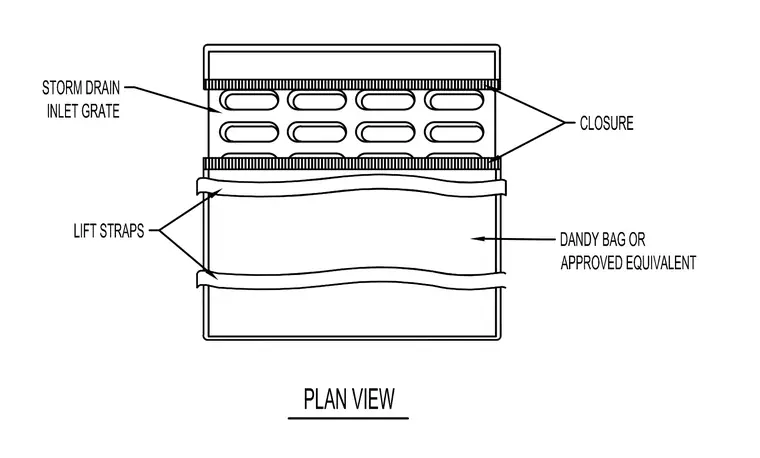

A stormwater inlet protection assembly features a Dandy Bag or approved equivalent sediment filter bag positioned over a storm drain inlet grate. Lift straps secure the geotextile bag around the structure, while closure elements seal the opening to prevent construction debris and sediment runoff from entering the drainage system.
PLAN VIEW CLOSURE LIFT STRAPS DANDY BAG OR APPROVED EQUIVALENT STORM DRAIN INLET GRATE
