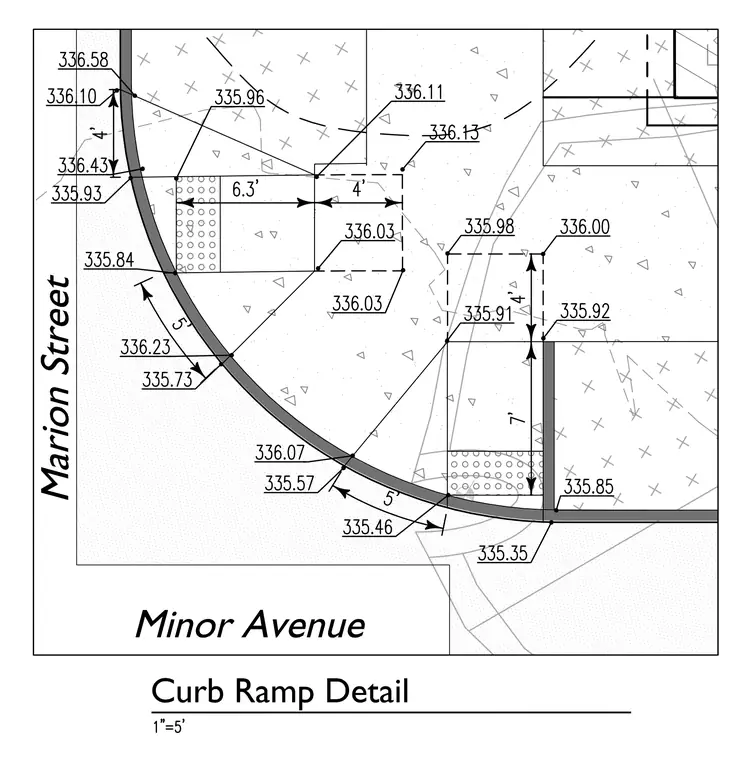

Layout and grading for a street corner curb ramp at the intersection of Marion Street and Minor Avenue. Truncated dome detectable warning surfaces are positioned at the ramp approaches, with landing and slope dimensions indicated as 4 feet, 5 feet, 6.3 feet, and 7 feet. Concrete paving joints and boundary lines organize the corner geometry. Numerous spot elevations ranging from 335.35 to 336.58 are provided across the ramp, curb, and sidewalk areas to ensure proper drainage and ADA compliance.
