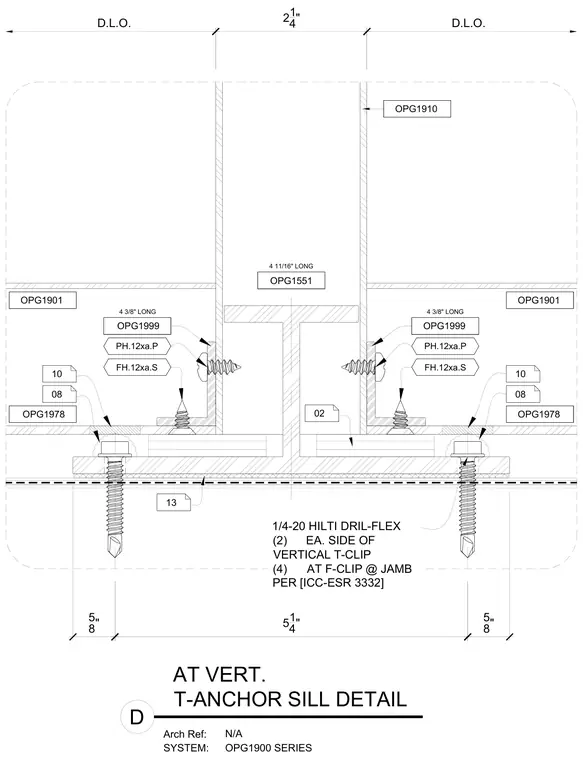

A vertical T-anchor sill connection is secured with one-quarter-20 Hilti Dril-Flex self-drilling screws on each side of the vertical T-clip and four fasteners at the F-clip at the jamb per ICC-ESR 3332. The framing components utilize specific series extrusions including OPG1551, OPG1910, OPG1901, and OPG1978, with fastener lengths specified at four and eleven-sixteenths inches and four and three-eighths inches. Dimensions indicate daylight openings of two and one-quarter inches alongside sill spacing of five and one-quarter inches.
Arch Ref: SYSTEM: T-ANCHOR SILL DETAIL AT VERT. D N/A OPG1900 SERIES PH.12xa.P FH.12xa.S PH.12xa.P FH.12xa.S 5 8" 5 8" 21 4" D.L.O. D.L.O. 51 4" 08 10 08 10 13 OPG1978 OPG1978 OPG1551 4 11/16" LONG OPG1910 OPG1999 4 3/8" LONG OPG1999 4 3/8" LONG OPG1901 OPG1901 02 1/4-20 HILTI DRIL-FLEX (2) EA. SIDE OF VERTICAL T-CLIP (4) AT F-CLIP @ JAMB PER [ICC-ESR 3332]
