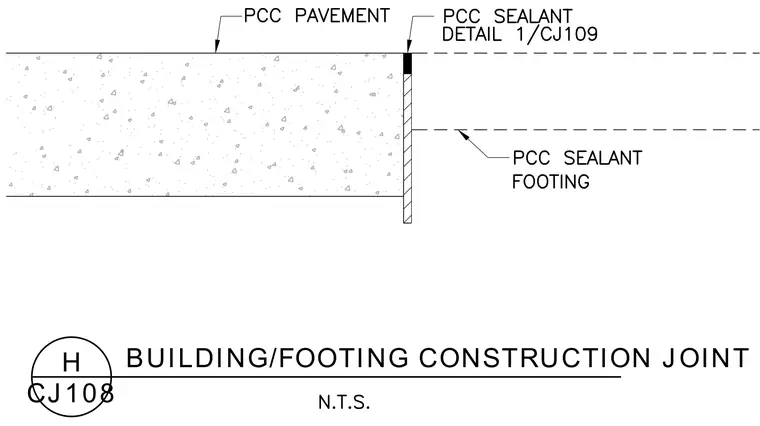

Portland cement concrete pavement abuts Portland cement concrete footing at a vertical construction joint sealed with Portland cement concrete sealant. The joint is detailed with Portland cement concrete sealant at the top surface, referencing detail 1/CJ109, and additional Portland cement concrete sealant along the vertical face of the footing.
