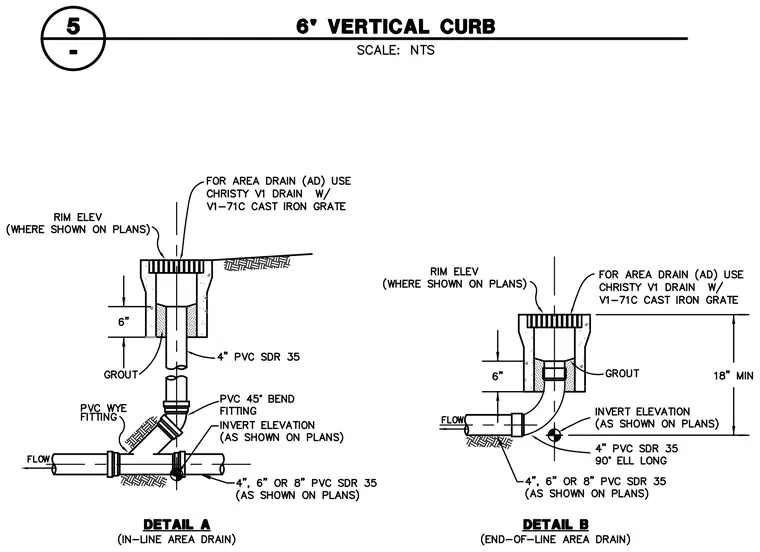

The assembly features a Christy V1 drain with a V1-71C cast iron grate set into a six-inch vertical curb with a specified rim elevation. A four-inch PVC SDR 35 pipe connects the drain body to either a PVC wye fitting with a forty-five degree bend for in-line applications or a ninety degree long sweep elbow for end-of-line applications. Grout secures the drain body within the six-inch vertical curb dimension, and the discharge piping ties into a four-inch, six-inch, or eight-inch PVC SDR 35 main line positioned at a designated invert elevation.
