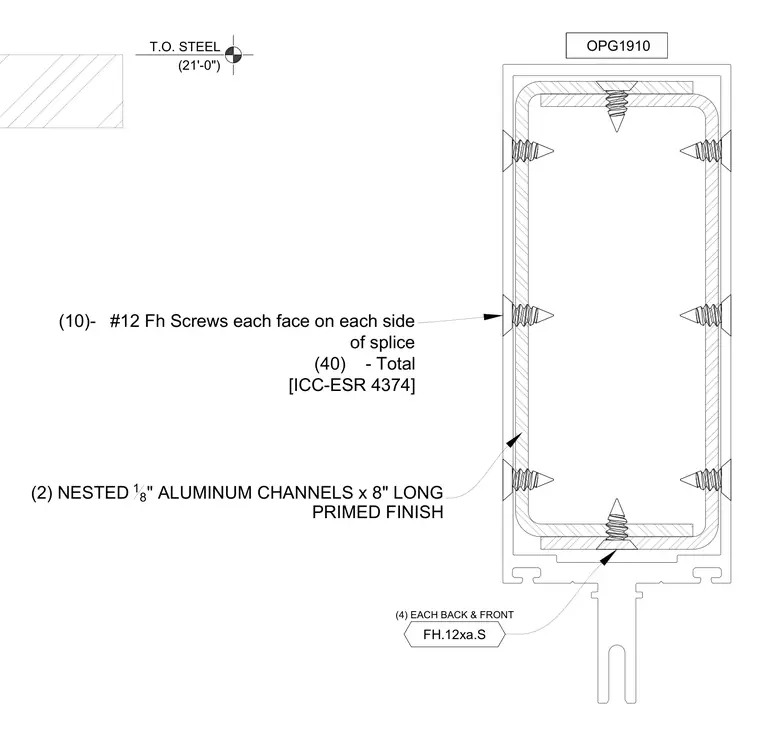

Two nested 1/8-inch aluminum channels, each 8 inches long with a primed finish, form a splice sleeve for the OPG1910 structural section positioned at top of steel 21 feet zero inches. Ten number 12 flat head screws secure each face on each side of the splice, totaling forty screws per ICC-ESR 4374. Four flat head screws marked FH.12xa.S attach to each back and front face.
(2) NESTED 18 " ALUMINUM CHANNELS x 8" LONG PRIMED FINISH FH.12xa.S (4) EACH BACK & FRONT OPG1910 T.O. STEEL (21'-0") (10)- #12 Fh Screws each face on each side of splice (40) - Total [ICC-ESR 4374]
