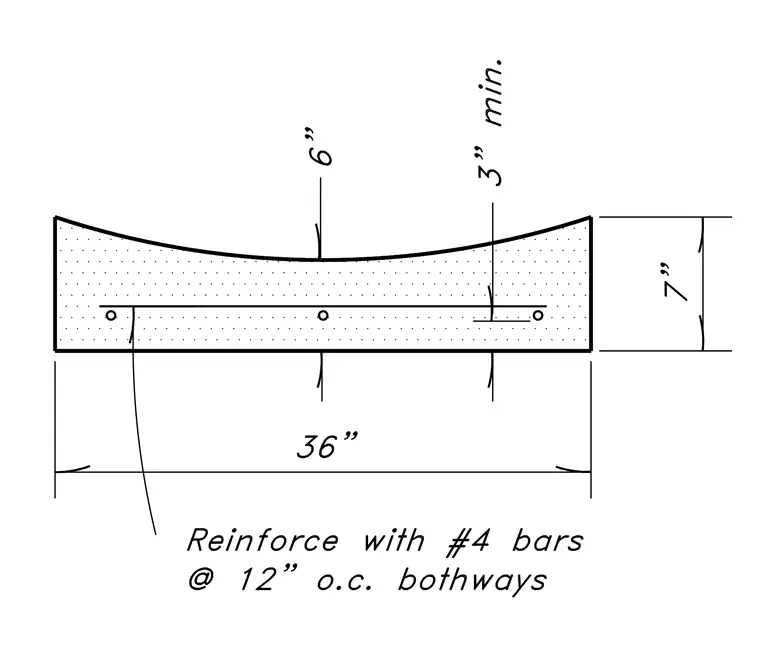

A precast concrete splash pad measures thirty-six inches in overall width, seven inches in overall depth, and six inches at the center low point of the dished top surface. The assembly is reinforced internally with number four bars spaced at twelve inches on center both ways, maintaining a three-inch minimum clearance from the surrounding concrete faces.
