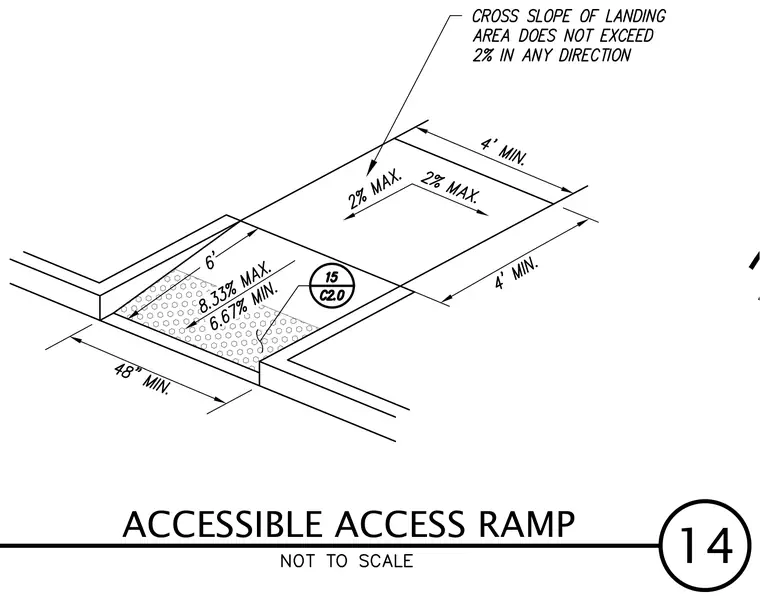

An accessible concrete access ramp features a slope ranging from a maximum of eight point three three percent to a minimum of six point six seven percent over a six-foot run with a forty-eight-inch minimum width. The adjoining landing requires a minimum four-foot by four-foot dimension with a maximum two percent cross slope in any direction.
