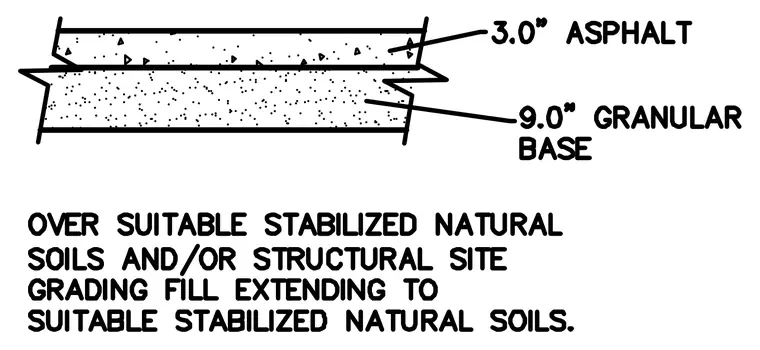

This heavy-duty pavement cross-section consists of three inches of asphalt surfacing placed over a nine-inch granular base course. The granular base is supported directly by suitable stabilized natural soils and or structural site grading fill extending down to suitable stabilized natural soils.
