Civil · C-CPHF9

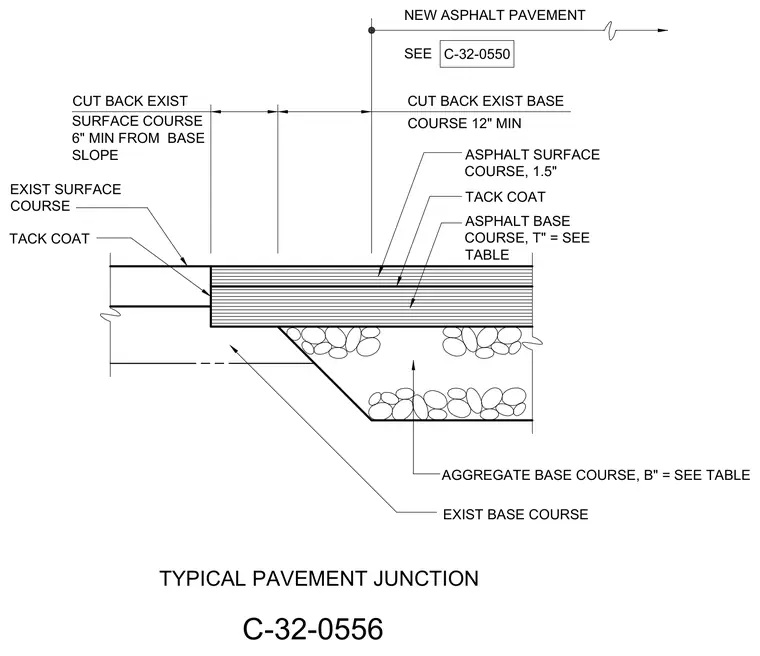

Typical Pavement Junction

About this detail

Connection between existing pavement and new asphalt pavement, specifying a minimum twelve-inch cut back of the existing base course and a six-inch minimum cut back of the existing surface course from the base slope. The new pavement build-up consists of a one-and-one-half-inch asphalt surface course over a tack coat, an asphalt base course with thickness per table, and an aggregate base course with thickness per table. A tack coat is applied at the vertical cut interface between the existing surface course and the new asphalt layers. The existing base course underlies the entire assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
