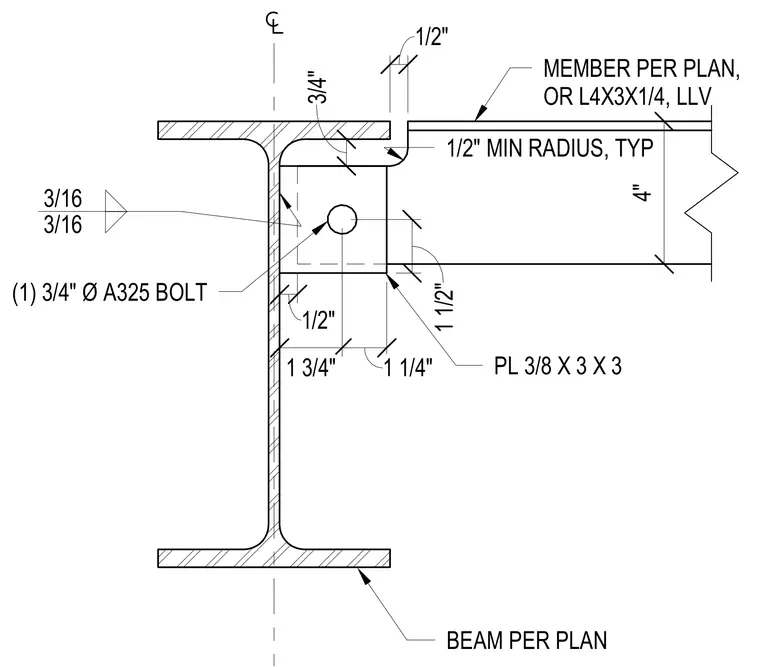

A 3/8-inch by 3-inch by 3-inch plate is welded to the web of the supporting beam with 3/16-inch fillet welds. The supported member connects to the shear tab using one 3/4-inch diameter ASTM A325 bolt. A 1/2-inch minimum radius notch is provided at the top corner of the supported member.
1/2" MEMBER PER PLAN, OR L4X3X1/4, LLV BEAM PER PLAN 1 3/4" 1 1/4" 3/16 3/16 (1) 3/4" Ø A325 BOLT 1/2" MIN RADIUS, TYP 3/4" 1/2" 4" 1 1/2" PL 3/8 X 3 X 3
