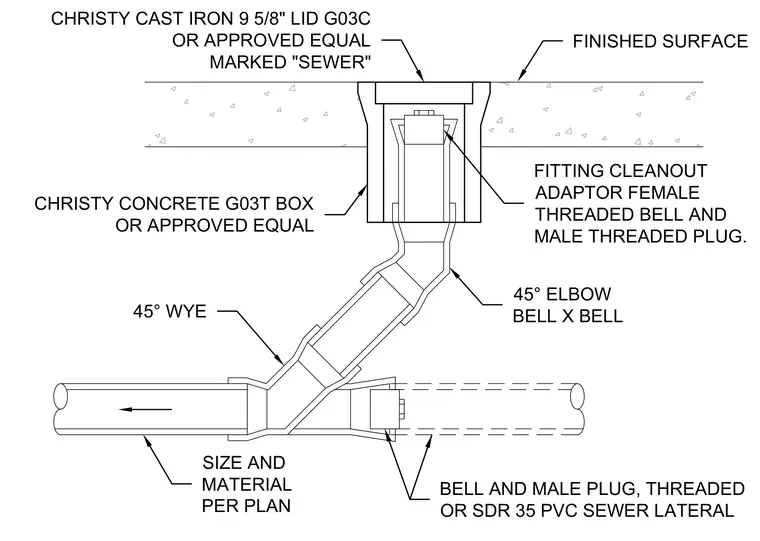

An SDR 35 PVC sewer lateral connects to a forty-five-degree wye and a forty-five-degree elbow with bell-and-bell joints. A fitting cleanout adaptor with a female threaded bell and male threaded plug terminates the vertical riser. The assembly is housed within a Christy concrete G03T box and topped with a Christy cast iron 9 5/8-inch lid marked SEWER, flush with the finished surface.
FITTING CLEANOUT ADAPTOR FEMALE THREADED BELL AND MALE THREADED PLUG. 45° ELBOW BELL X BELL BELL AND MALE PLUG, THREADED OR SDR 35 PVC SEWER LATERAL 45° WYE CHRISTY CAST IRON 9 5/8" LID G03C OR APPROVED EQUAL MARKED "SEWER" FINISHED SURFACE CHRISTY CONCRETE G03T BOX OR APPROVED EQUAL SIZE AND MATERIAL PER PLAN
