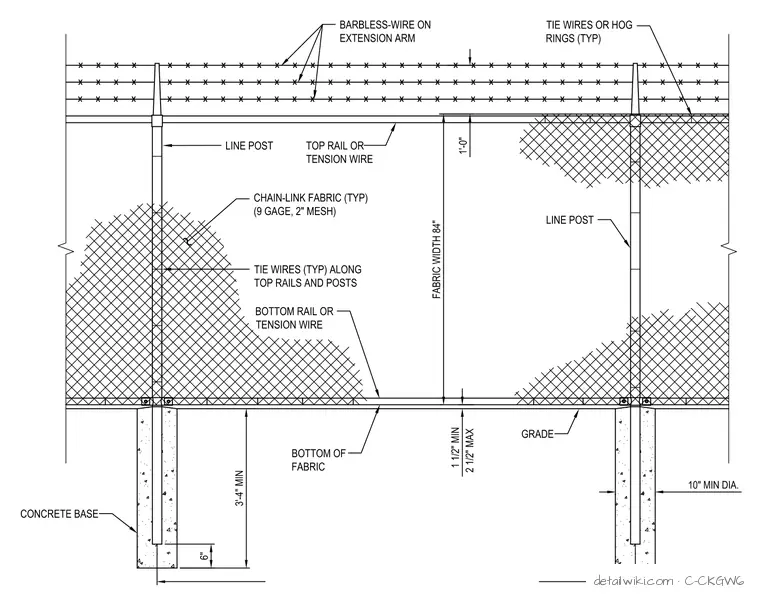

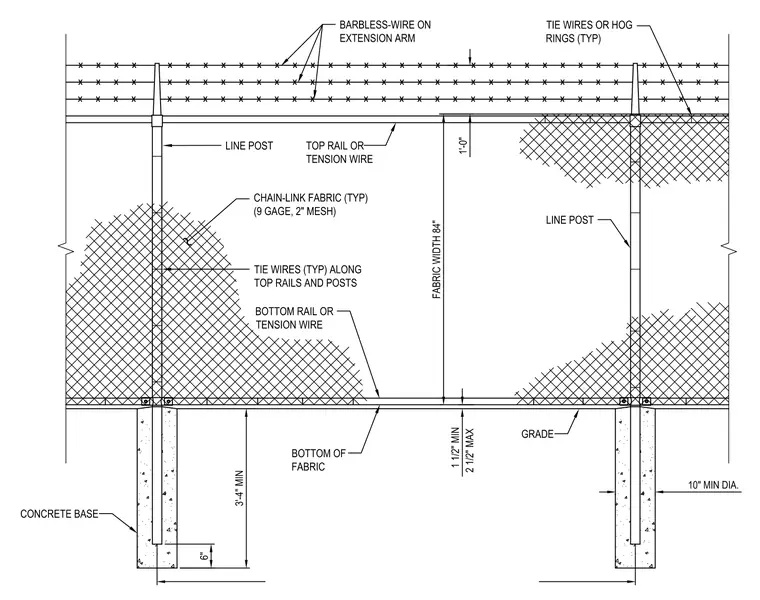

This elevation shows a chain-link security fence assembly featuring line posts embedded in ten-inch minimum diameter concrete bases. The fence fabric is nine-gauge, two-inch mesh, secured to the top and bottom rails or tension wires using tie wires or hog rings. A one-foot tall extension arm at the top of each line post supports three strands of barbless wire. The fabric width is eighty-four inches, with the bottom of the fabric positioned between one and a half and two and a half inches above grade. The concrete footings extend three feet four inches below grade, with a six-inch clearance from the bottom of the post to the bottom of the footing.
