Civil · C-CDZ2C

Aircraft Rated Cleanout Inline

Materials

Elements

Drainage Site / Paving Connections / Plates

About this detail

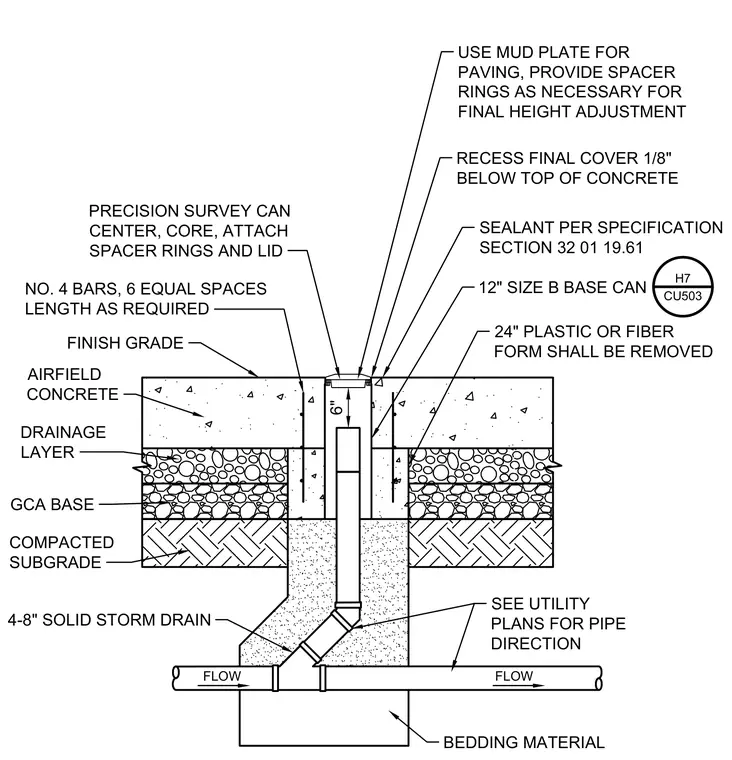

An inline cleanout assembly set flush with finish grade in heavy-duty airfield concrete pavement. A twelve-inch size B base can is installed within a twenty-four-inch plastic or fiber form that must be removed, resting upon a drainage layer, GCA base, and compacted subgrade. Number four reinforcing bars are placed with six equal spaces around the perimeter at a length as required. A mud plate is used for paving, with spacer rings provided as necessary for final height adjustment of the precision survey can, center, core, and lid. The final cover is recessed one-eighth inch below the top of the concrete, and sealant is applied per specification section thirty-two zero one nineteen point sixty-one. A four to eight-inch solid storm drain connects below in bedding material, with pipe direction and routing coordinated per utility plans.
