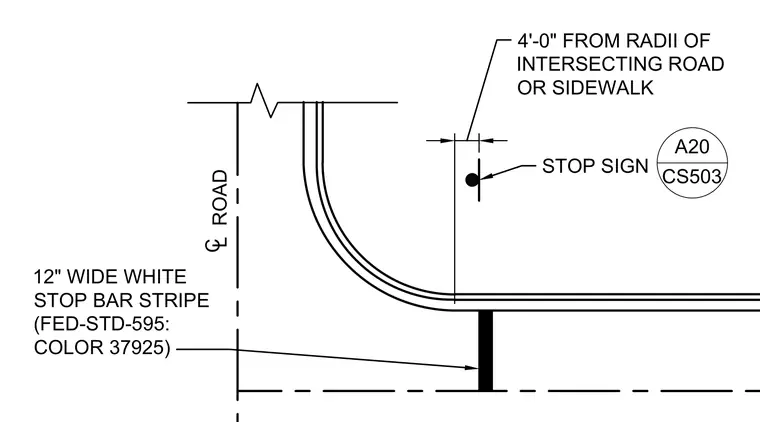

A stop sign is positioned four feet from the radii of the intersecting road or sidewalk. A twelve-inch wide white stop bar stripe conforming to Federal Standard 595 color 37925 is marked across the roadway.
L ROAD C 4'-0" FROM RADII OF INTERSECTING ROAD OR SIDEWALK STOP SIGN 12" WIDE WHITE STOP BAR STRIPE (FED-STD-595: COLOR 37925) A20 CS503
