An existing ash system control panel sits adjacent to a structural column in an industrial facility. A compressed air and purge air supply line connects to the control panel enclosure. An existing cable tray routes overhead from the control panel area.

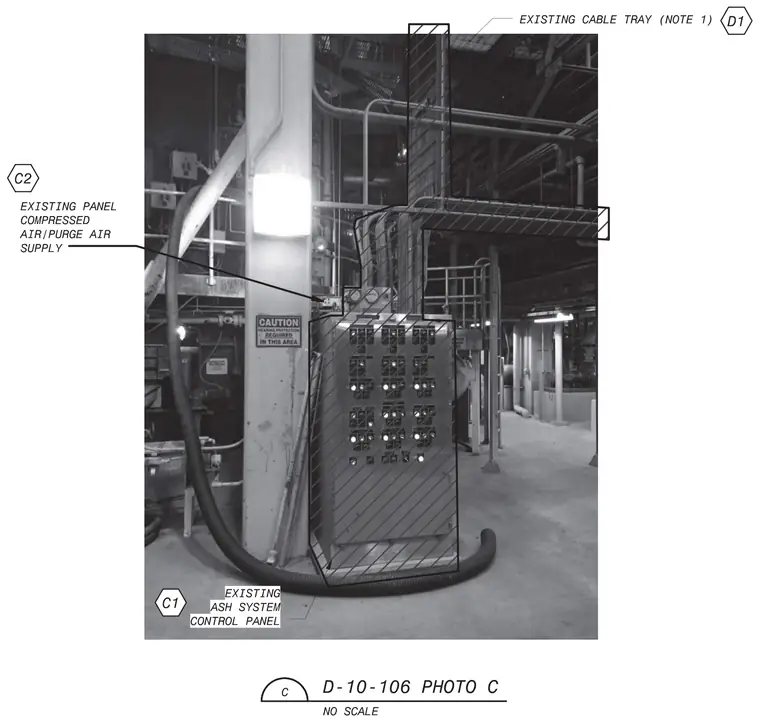

EXISTING CABLE TRAY (NOTE 1) (pi^ A C2 it EXISTING PANEL COMPRESSED AIR/PURGE AIR SUPPLY -------------- <i- JlL. IN THIS AREA * \ EXISTING' CrmiASH SYSTEM CONTROL PANEL D -10 -106 PHOTO C NO SCALE
