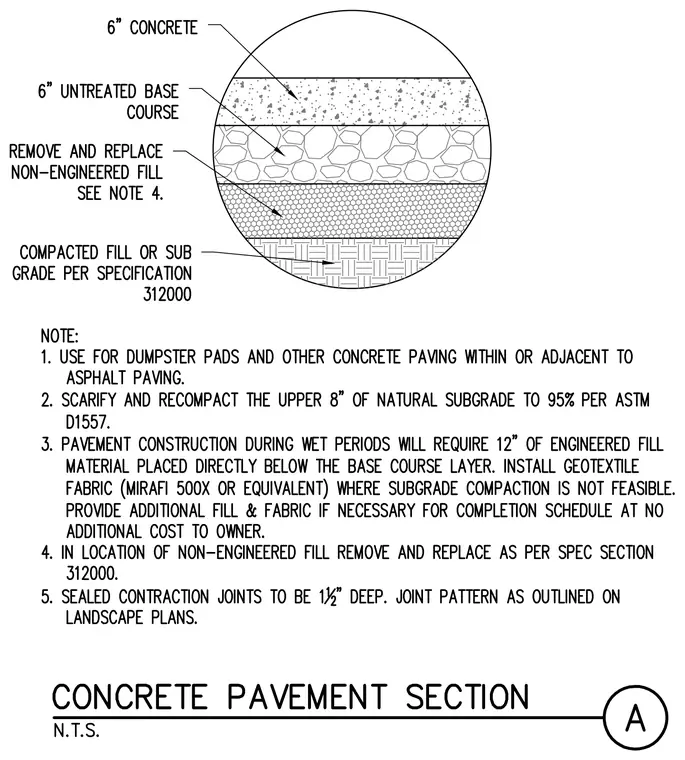

A six-inch concrete slab rests on a six-inch untreated base course. Below the base course sits non-engineered fill designated for removal and replacement per specification section 312000, supported by compacted fill or subgrade per specification 312000.
