C-C7SSN — Utility Door Jam

Civil · C-C7SSN

Utility Door Jam

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: C5
Discipline: Civil

Materials

Cold-formed Steel Composite Concrete Masonry / CMU Metal (misc.)Steel Timber / Wood

Elements

Doors Facades / Cladding Walls Waterproofing / Flashing

Text on the drawing

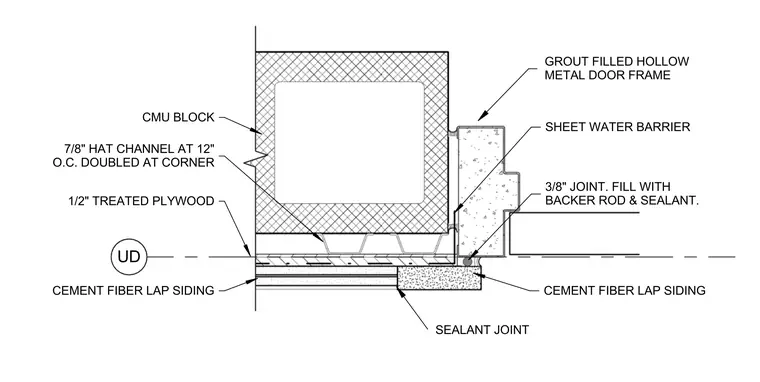

UD 7/8" HAT CHANNEL AT 12" O.C. DOUBLED AT CORNER UD CMU BLOCK 1/2" TREATED PLYWOOD CEMENT FIBER LAP SIDING CEMENT FIBER LAP SIDING 3/8" JOINT. FILL WITH BACKER ROD & SEALANT. SHEET WATER BARRIER SEALANT JOINT GROUT FILLED HOLLOW METAL DOOR FRAME
