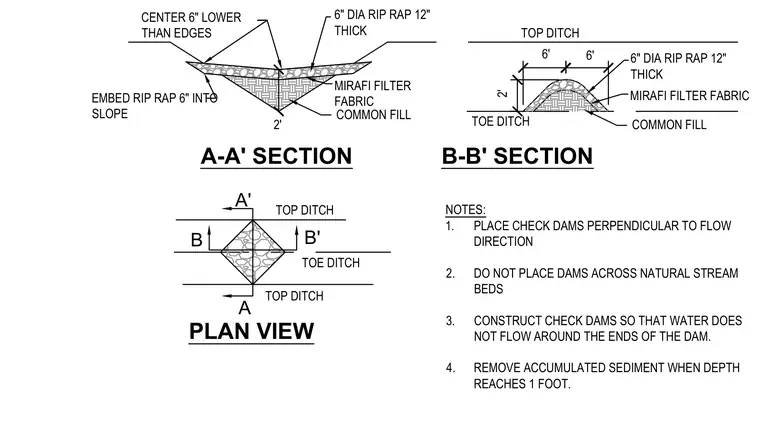

The check dam assembly consists of common fill wrapped in Mirafi filter fabric and surfaced with six-inch diameter riprap twelve inches thick. Section A-A shows the center of the channel shaped six inches lower than the edges with the riprap embedded six inches into the slope. Section B-B indicates a two-foot height and six-foot width profile for the dam structure. Check dams must be placed perpendicular to flow direction, kept out of natural stream beds, and constructed so water does not bypass the ends.
PLAN VIEW B-B' SECTION TOP DITCH TOP DITCH TOE DITCH TOP DITCH TOE DITCH 2' 6' 6' A A' 6" DIA RIP RAP 12" THICK MIRAFI FILTER FABRIC COMMON FILL B B' A-A' SECTION 2' 6" DIA RIP RAP 12" THICK MIRAFI FILTER FABRIC COMMON FILL CENTER 6" LOWER THAN EDGES EMBED RIP RAP 6" INTO SLOPE NOTES: 1. PLACE CHECK DAMS PERPENDICULAR TO FLOW DIRECTION 2. DO NOT PLACE DAMS ACROSS NATURAL STREAM BEDS 3. CONSTRUCT CHECK DAMS SO THAT WATER DOES NOT FLOW AROUND THE ENDS OF THE DAM. 4. REMOVE ACCUMULATED SEDIMENT WHEN DEPTH REACHES 1 FOOT.
