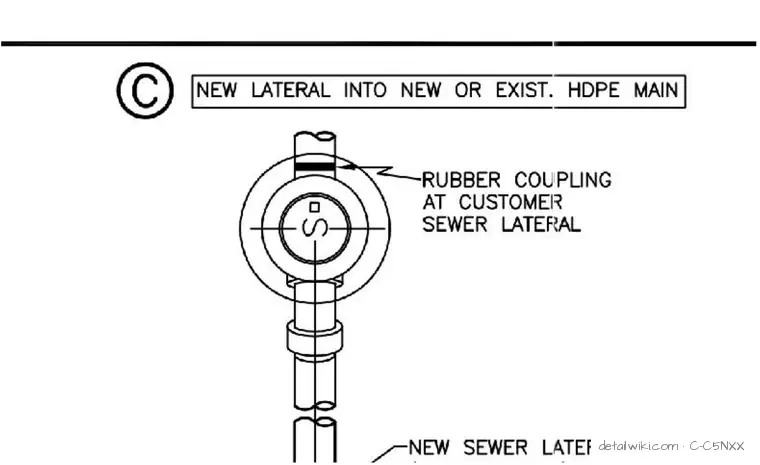

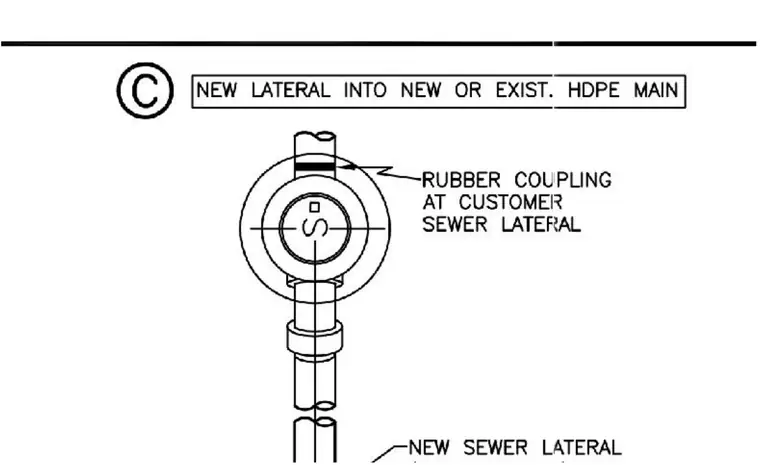

The assembly illustrates the connection of a customer sewer lateral pipe to a high-density polyethylene main pipe using a rubber coupling. Key components include the new sewer lateral, the rubber coupling at the customer connection, and the main pipe.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
