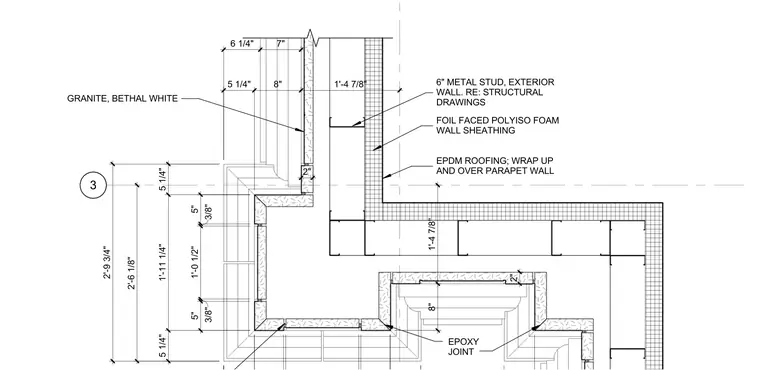

A low parapet assembly incorporates Bethal White granite veneer cladding exterior to six-inch metal stud backup walls. Foil-faced polyiso foam wall sheathing provides continuous insulation behind the exterior finish. Epsilon membrane roofing wraps up and over the top of the parapet wall. Epoxy joints are detailed between the granite panels. Dimensions establish the dimensional layout of the exterior cladding, framing, and joints.
3 2'-9 3/4" 2'-6 1/8" 5 1/4" 1'-11 1/4" 5 1/4" 5" 3/8" 1'-0 1/2" 3/8" 5" 6 1/4" 7" 5 1/4" 8" 1'-4 7/8" 2" 2" 8" 1'-4 7/8" EPOXY JOINT 6" METAL STUD, EXTERIOR WALL. RE: STRUCTURAL DRAWINGS GRANITE, BETHAL WHITE EPDM ROOFING; WRAP UP AND OVER PARAPET WALL FOIL FACED POLYISO FOAM WALL SHEATHING
