The stabilized construction entrance consists of a gravel pad measuring fifty feet minimum in length and twelve feet minimum in width. The pad is surfaced with three to six inch rock, nine inches thick, placed over a one-half to three-quarter inch filter layer. A filter fabric is installed below the gravel layer to prevent subgrade migration. Runoff is directed via a swale to a sedimentation basin. A required sign is placed adjacent to the entrance directing all construction traffic to enter and exit at this designated location.

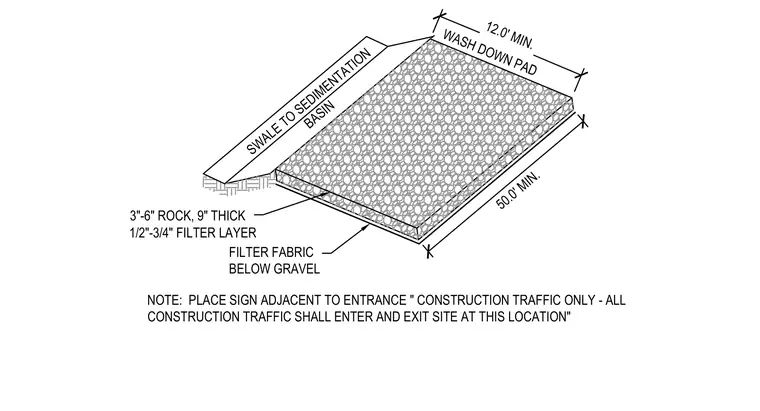

SWALE TO SEDIMENTATION BASIN 50.0' MIN. WASH DOWN PAD 12.0' MIN. 3"-6" ROCK, 9" THICK 1/2"-3/4" FILTER LAYER FILTER FABRIC BELOW GRAVEL NOTE: PLACE SIGN ADJACENT TO ENTRANCE " CONSTRUCTION TRAFFIC ONLY - ALL CONSTRUCTION TRAFFIC SHALL ENTER AND EXIT SITE AT THIS LOCATION"
