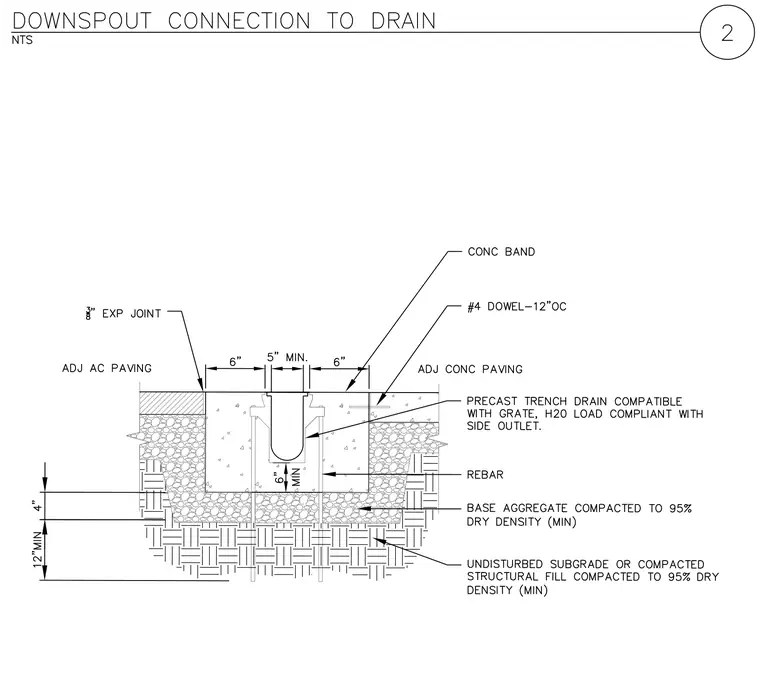

A precast trench drain accommodates a grate for H20 load compliance and features a side outlet for downspout connection. The trench drain is set within a concrete band flanked by a three-eighths inch expansion joint, adjacent asphalt concrete paving, and adjacent concrete paving tied with number four dowels spaced at twelve inches on center. The assembly rests on a concrete base with reinforcing rebar, underlain by a minimum of four inches of base aggregate compacted to ninety-five percent dry density minimum. The entire system bears on undisturbed subgrade or compacted structural fill compacted to ninety-five percent dry density minimum.
6" 6" 6" MIN ADJ CONC PAVING ADJ AC PAVING 4" 12"MIN 5" MIN. 3 8 " EXP JOINT CONC BAND #4 DOWEL-12"OC PRECAST TRENCH DRAIN COMPATIBLE WITH GRATE, H20 LOAD COMPLIANT WITH SIDE OUTLET. REBAR UNDISTURBED SUBGRADE OR COMPACTED STRUCTURAL FILL COMPACTED TO 95% DR DENSITY (MIN) BASE AGGREGATE COMPACTED TO 95% DRY DENSITY (MIN) NTS 2 DOWNSPOUT CONNECTION TO DRAIN
