Asphalt Pavement Repair Detail

Elements

About this detail

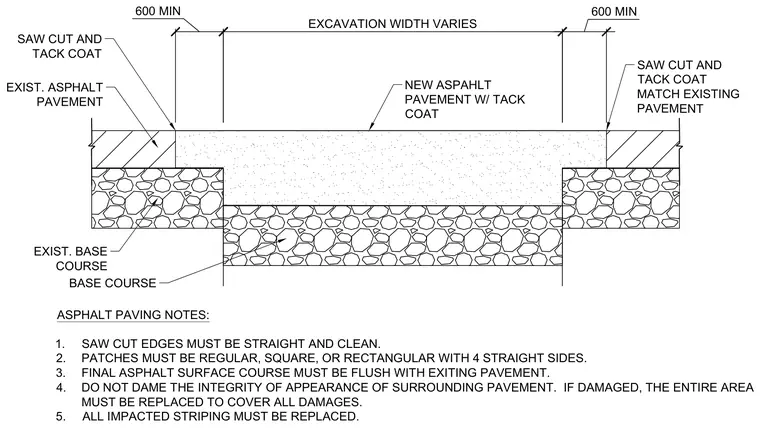

The repair assembly consists of a new asphalt surface course placed over a base course, flanked by existing asphalt pavement and existing base course. The edges of the existing asphalt are saw-cut straight and clean, with a tack coat applied to match the existing pavement. The excavation width varies with a six hundred millimeter minimum on each side. The final asphalt surface course finishes flush with the surrounding existing pavement. Patches are regular, square, or rectangular with four straight sides. Surrounding pavement appearance and integrity must remain undamaged during construction.
