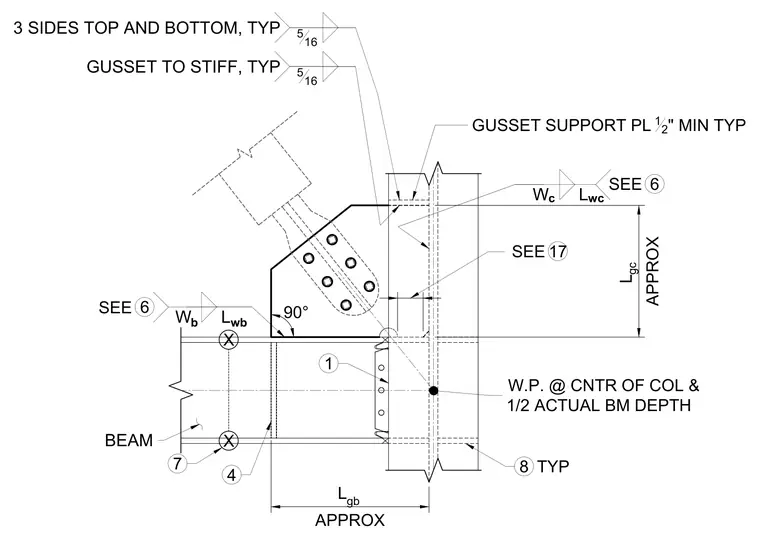

The brace connects to a gusset plate bolted with structural fasteners and welded to a gusset support plate. A one-half-inch minimum typical gusset support plate ties into the column web and flange with five-sixteenths-inch fillet welds on three sides top and bottom. The beam frames into the column with a bolted shear connection and is stiffened with plate elements. The working point is located at the center of the column and one-half of the actual beam depth.
90° W b 6 SEE L gb APPROX BEAM L gc APPROX W.P. @ CNTR OF COL & 1/2 ACTUAL BM DEPTH 4 X X 7 8 TYP GUSSET TO STIFF, TYP 6 SEE 3 SIDES TOP AND BOTTOM, TYP 516 516 W c L wb L wc GUSSET SUPPORT PL 12 " MIN TYP 1 17 SEE
