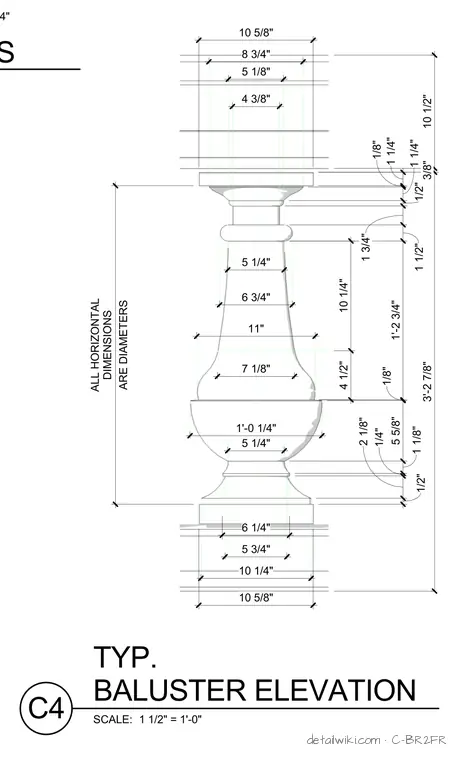

The drawing provides a detailed elevation view of a traditional baluster profile with complete sizing specifications. It includes dimensions for all horizontal diameters as well as vertical segment heights. A title block with the detail number C4 and scale is present at the bottom.
Text on the drawing
3'-2 7/8" 3/8" 10 1/2" 10 5/8" 10 5/8" ARE DIAMETERS ALL HORIZONTAL DIMENSIONS 1 1/4" 1/8" 1 1/4" 1/2" 1 3/4" 1 1/2" 1'-2 3/4" 1/8" 5 5/8" 1 1/8" 1/4" 2 1/8" 1/2" 10 1/4" 4 1/2" 8 3/4" 5 1/8" 4 3/8" 5 1/4" 6 3/4" 7 1/8" 11" 1'-0 1/4" 5 1/4" 10 1/4" 5 3/4" 6 1/4" 2 3/4" SCALE: 1 1/2" = 1'-0" C4 TYP. BALUSTER ELEVATION TOWER PORTICO DENTALS
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
