Concrete thrust blocks are poured against undisturbed soil at pipe fittings, bends, and tees to restrain hydraulic thrust forces in pressurized water or utility lines. These configurations require a minimum bearing thickness of twelve inches and specified angular orientation up to forty-five degrees maximum against the trench wall. The mass concrete bears directly against the fitting collar to distribute dynamic loads safely into the surrounding earth.

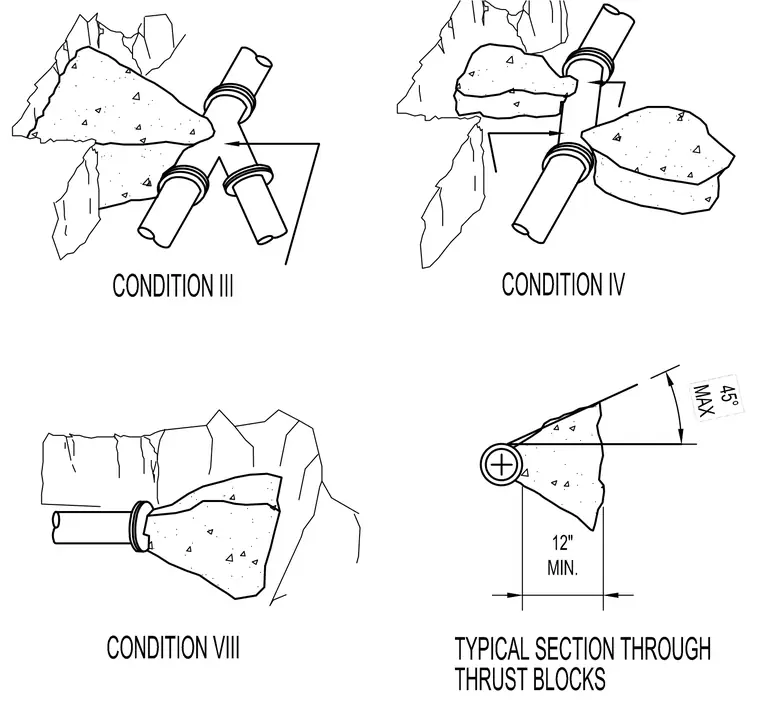

CONDITION VIII CONDITION III THRUST BLOCKS TYPICAL SECTION THROUGH CONDITION IV 12" MIN. 45° MAX
