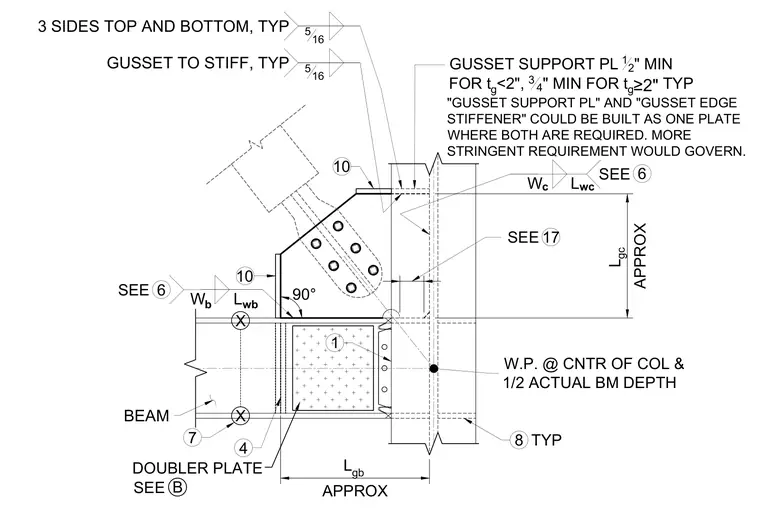

A braced frame connection at the bottom of a brace features a gusset plate attached to a column and beam framing intersection. The gusset plate is welded to stiffener plates with five-sixteenths inch fillet welds applied to three sides top and bottom. A gusset support plate requires a one-half inch minimum thickness for gusset thicknesses under two inches, and a three-quarter inch minimum for gusset thicknesses of two inches or greater. The assembly includes a beam with a doubler plate and work points located at the center of the column and half the actual beam depth.
90° W b 6 SEE L gb APPROX BEAM L gc APPROX W.P. @ CNTR OF COL & 1/2 ACTUAL BM DEPTH 4 X X 7 10 8 TYP GUSSET TO STIFF, TYP 6 SEE 10 3 SIDES TOP AND BOTTOM, TYP 516 516 W c L wb L wc GUSSET SUPPORT PL 12 " MIN FOR t g <2", 3 4 " MIN FOR t g ≥2" TYP "GUSSET SUPPORT PL" AND "GUSSET EDGE STIFFENER" COULD BE BUILT AS ONE PLATE WHERE BOTH ARE REQUIRED. MORE STRINGENT REQUIREMENT WOULD GOVERN. 1 DOUBLER PLATE B SEE 17 SEE vf / ; ,> -<■ o O o o ° x oX O —Z Hi V o -X o
