Concrete pavers are bedded in a three-quarter-inch latex mortar setting bed with a bond coat and latex mortar joints over a four-inch minimum Class II concrete slab. The concrete slab is reinforced with number four bars at sixteen inches on center each way and features a full-depth expansion joint. Below the concrete slab, a four-inch minimum Class II aggregate base is compacted to ninety-five percent per ASTM D1557. The subgrade is compacted to ninety-five percent per ASTM D1557 with a twelve-inch minimum thickness.

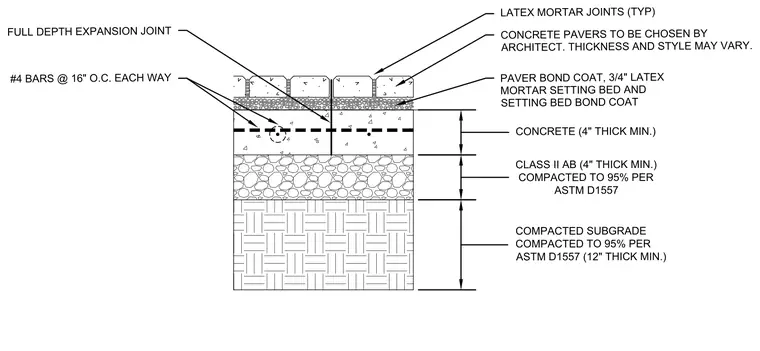

CONCRETE (4" THICK MIN.) CLASS II AB (4" THICK MIN.) COMPACTED TO 95% PER ASTM D1557 COMPACTED SUBGRADE COMPACTED TO 95% PER ASTM D1557 (12" THICK MIN.) #4 BARS @ 16" O.C. EACH WAY PAVER BOND COAT, 3/4" LATEX MORTAR SETTING BED AND SETTING BED BOND COAT LATEX MORTAR JOINTS (TYP) CONCRETE PAVERS TO BE CHOSEN BY ARCHITECT. THICKNESS AND STYLE MAY VARY. FULL DEPTH EXPANSION JOINT
