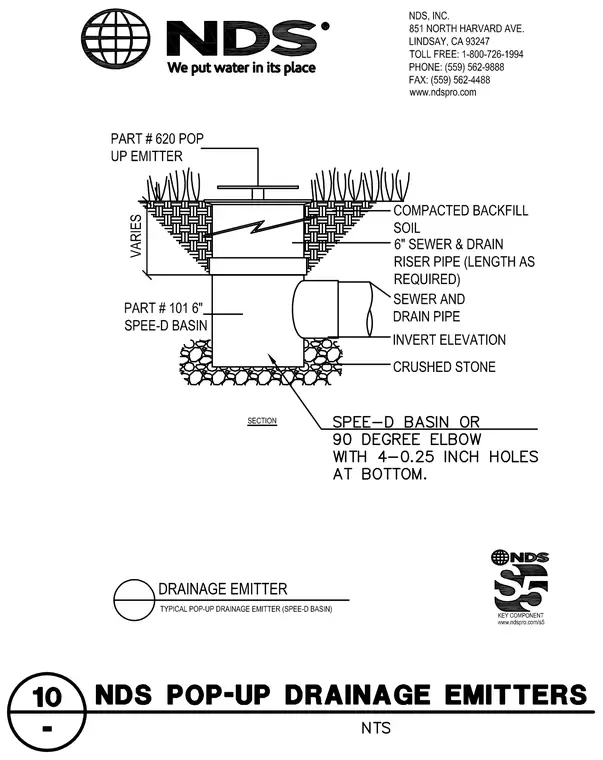

A pop-up drainage emitter installation incorporates a Part 620 pop-up emitter positioned above grade within compacted backfill and soil. The emitter connects to a 6-inch sewer and drain riser pipe of variable length, which extends downward into a Part 101 6-inch Spee-D basin. The Spee-D basin rests on a bed of crushed stone and connects horizontally to a sewer and drain pipe at a specified invert elevation. The bottom of the basin features a Spee-D basin or ninety-degree elbow with four 0.25-inch holes for subsurface drainage.
