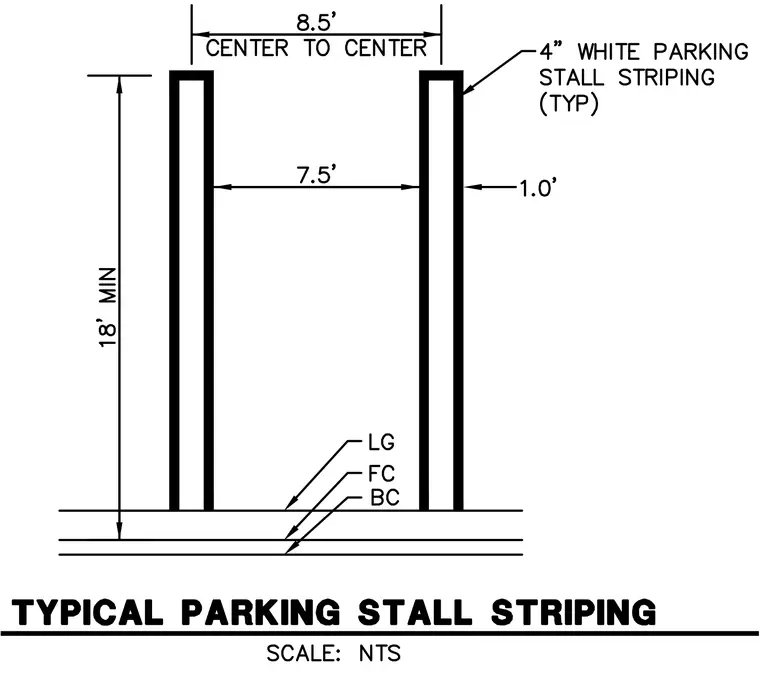

Standard parking stall striping layout dimensions and marking configurations. The stalls feature four-inch wide white parking stall striping typically applied with an eight and a half foot center-to-center spacing and a seven and a half foot clear interior width. The minimum stall length is eighteen feet with associated line designations including LG, FC, and BC.
