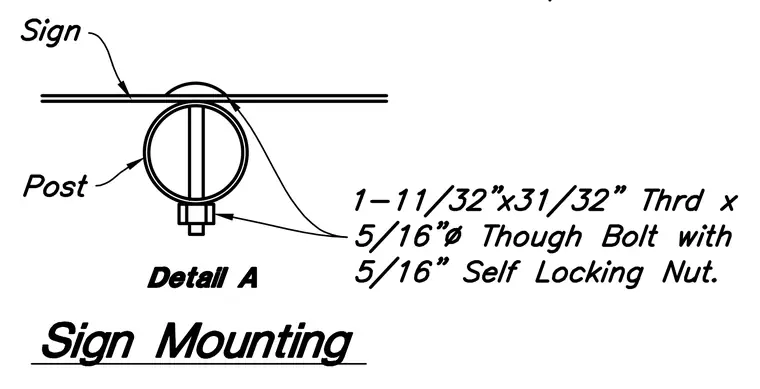

A sign panel is attached to a tubular post using a single 11/32-inch by 31/32-inch threaded through bolt with a 5/16-inch diameter and a 5/16-inch self-locking nut. The fastener passes directly through the post profile to clamp the sign firmly in place. The bolted connection provides a secure mechanical attachment for exterior signage applications.
