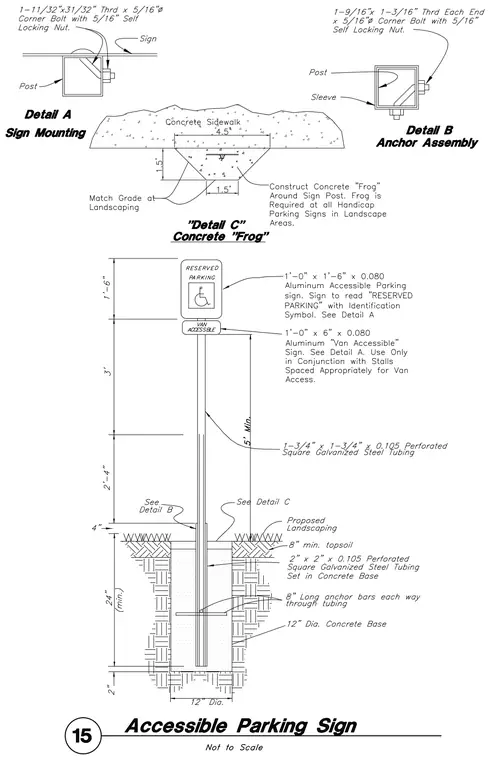

An accessible parking sign assembly utilizes a 1-3/4" by 1-3/4" by 0.105" perforated square galvanized steel tubing post nested inside a 2" by 2" by 0.105" perforated square galvanized steel tubing sleeve set into a 12" diameter concrete base. The base extends 24" minimum below grade with an 8" long anchor bar running through the tubing. The post secures aluminum accessible parking and van accessible signs using corner bolts with self-locking nuts. In landscape areas, a concrete frog is constructed around the sign post matching grade at landscaping with a 4.5" thickness.
