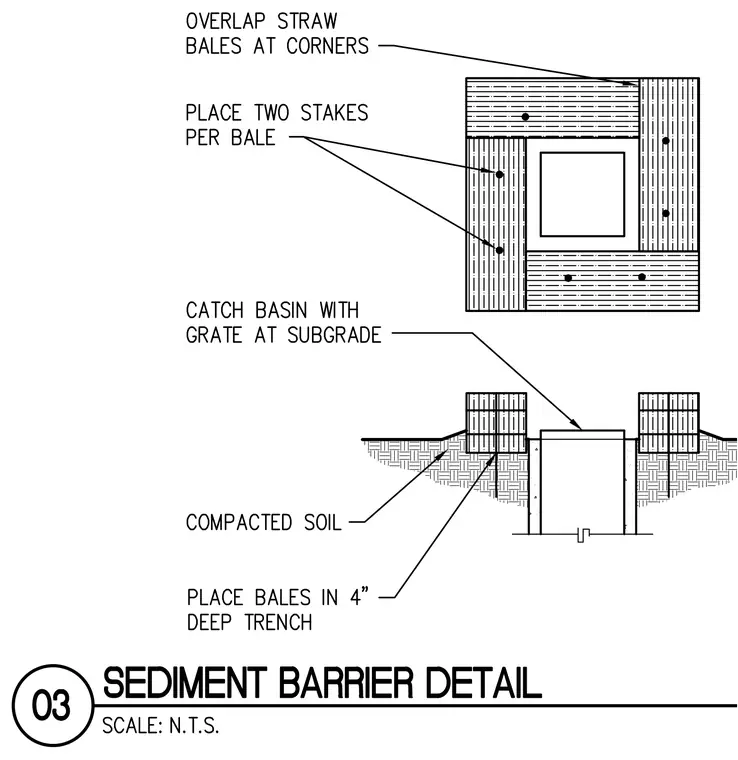

Straw bales are placed in a four inch deep trench around a catch basin with a grate at subgrade. Two stakes are driven through each bale into the compacted soil below. The straw bales overlap at the corners to maintain continuous sediment filtration.
