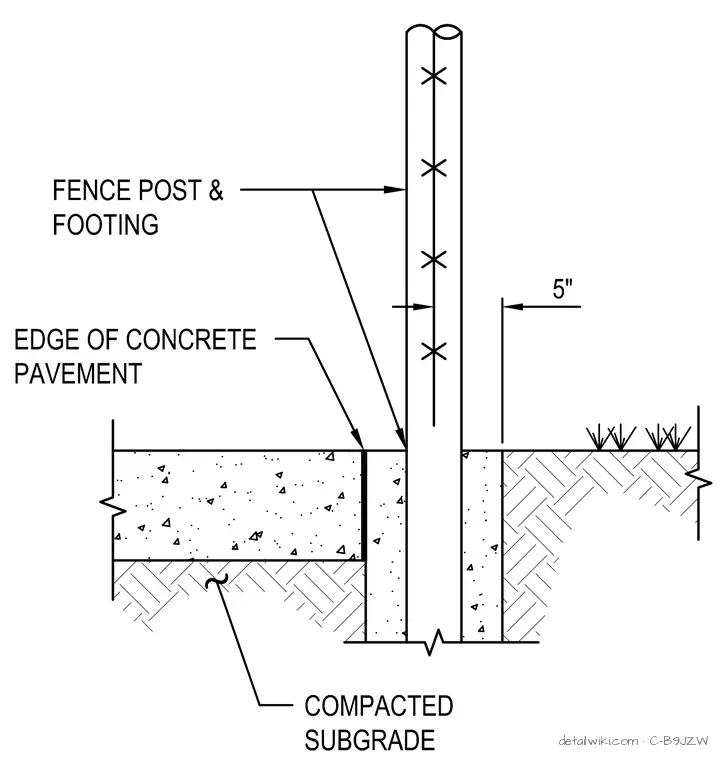

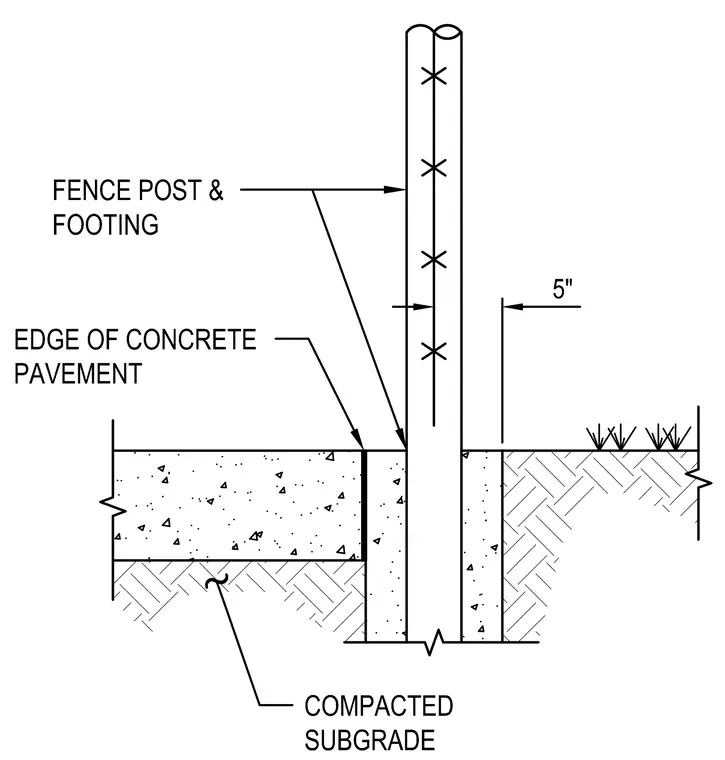

A fence post is set within a concrete footing that is positioned directly against the edge of a concrete pavement slab. The footing extends into the compacted subgrade below the pavement elevation. A five-inch clearance is maintained between the edge of the concrete pavement and the adjacent grade.
