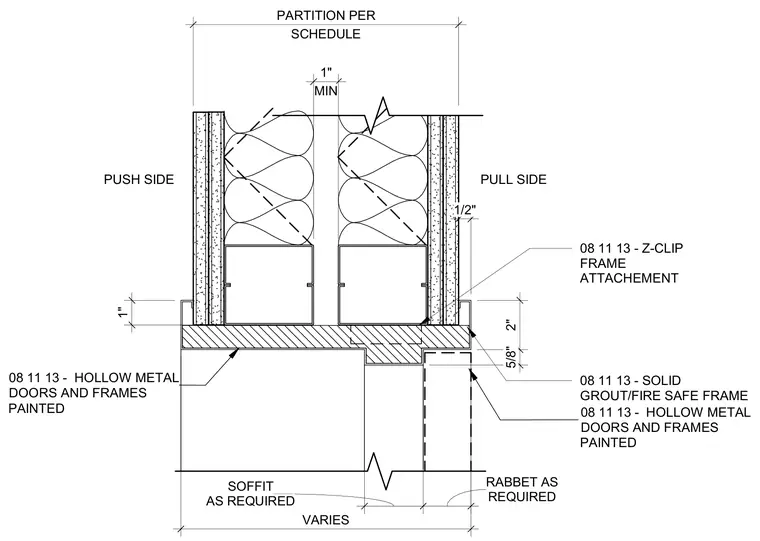

A hollow metal door frame with a painted finish is anchored to a partition type L using Z-clip frame attachments. The hollow metal frame features a solid grout and fire-safe fill. Gypsum board assemblies terminate at the frame with varying rabbet and soffit dimensions as required.
SCHEDULE PARTITION PER REQUIRED RABBET AS AS REQUIRED SOFFIT 2" 5/8" 1/2" 1" PULL SIDE PUSH SIDE VARIES 08 11 13 - HOLLOW METAL DOORS AND FRAMES 08 11 13 - HOLLOW METAL DOORS AND FRAMES 08 11 13 - Z-CLIP FRAME ATTACHEMENT PAINTED 08 11 13 - SOLID GROUT/FIRE SAFE FRAME PAINTED MIN 1"
