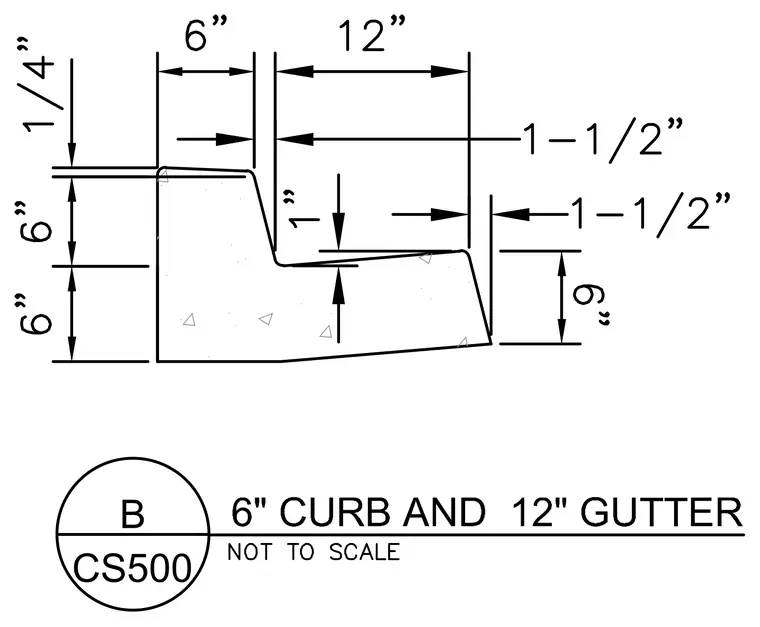

Cross-section geometry and dimensions for a standard concrete curb and gutter assembly. The vertical face of the curb measures six inches high with a six-inch top width, sloping back to a twelve-inch gutter pan. The gutter pan slopes downward with a one-inch drop toward the flowline, maintaining a six-inch outer edge height. Overall dimensions and profile transitions are clearly marked for site civil construction.
