Edge Transition From PCC Edge to Asphalt

Materials

About this detail

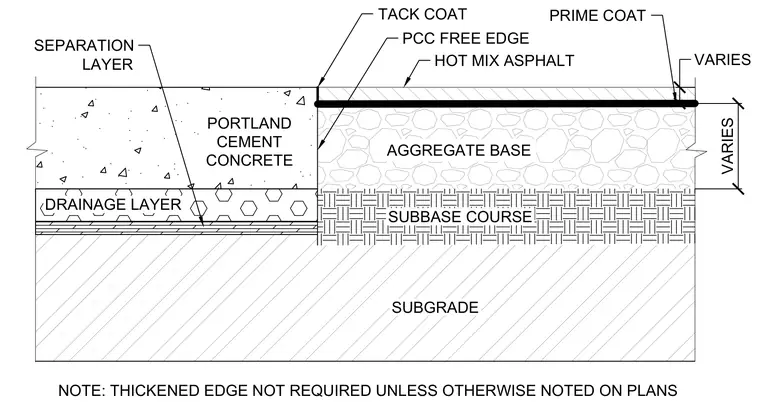

Hot mix asphalt is placed against the Portland cement concrete free edge with a tack coat applied at the vertical interface and a prime coat on the aggregate base. The asphalt section consists of hot mix asphalt over an aggregate base course, subbase course, and subgrade. The Portland cement concrete slab rests on a drainage layer, a separation layer, a subbase course, and subgrade. A thickened edge is not required unless otherwise noted on the plans, and the overall base and subbase thicknesses vary.
