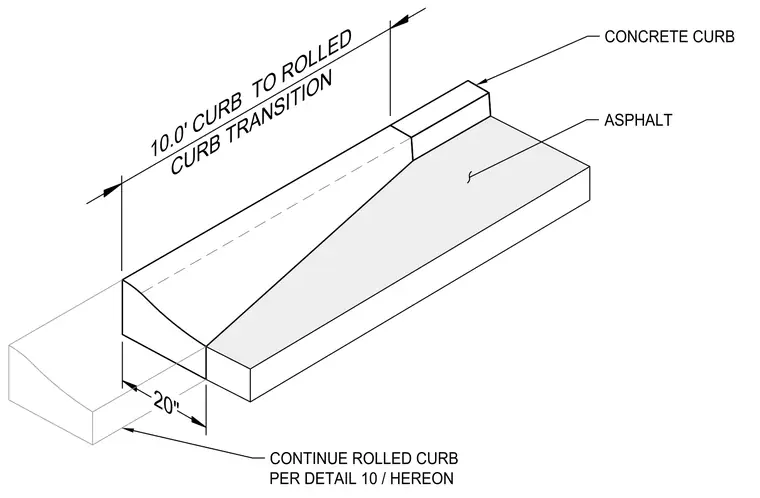

A ten-foot transition zone from a standard vertical concrete curb to a rolled curb profile adjacent to asphalt paving. A twenty-inch extension segment connects the transition to the continuing rolled curb assembly per detail specifications. The concrete curb tapers progressively along the ten-foot length to match the adjacent roadway geometry.
20" 10.0' CURB TO ROLLED CURB TRANSITION CONCRETE CURB ASPHALT CONTINUE ROLLED CURB PER DETAIL 10 / HEREON
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
