Buckling-Restrained Brace Gusset Connection at Base Plate

Materials

Steel

Elements

Columns Connections / Plates

Connections

Gusset Plate Base Plate / Anchorage Bolted Connection

About this detail

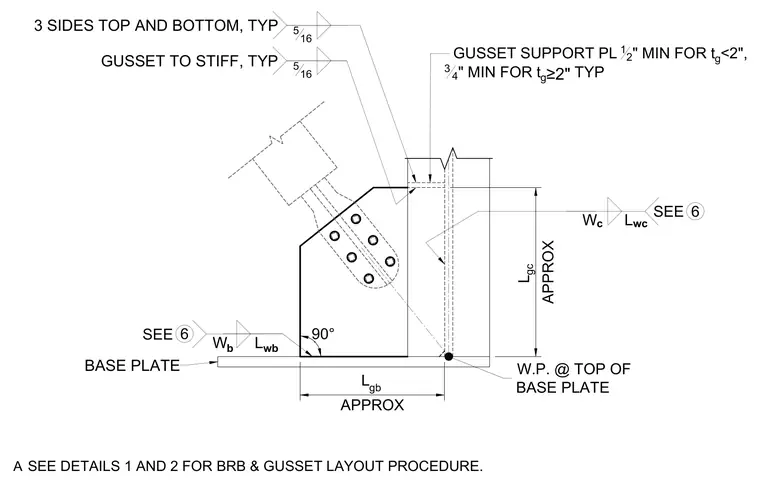

A buckling-restrained brace connects to a gusset plate at a base plate and column assembly. A gusset support plate measuring one-half inch minimum for gusset thickness under two inches, or three-quarters inch minimum for gusset thickness two inches and greater, is provided typical. The gusset plate connects to the stiffener with five-sixteenth-inch fillet welds on three sides, top and bottom, typical. Working points and approximate dimensions govern the layout alongside reference notes directing to additional BRB and gusset layout procedures.
