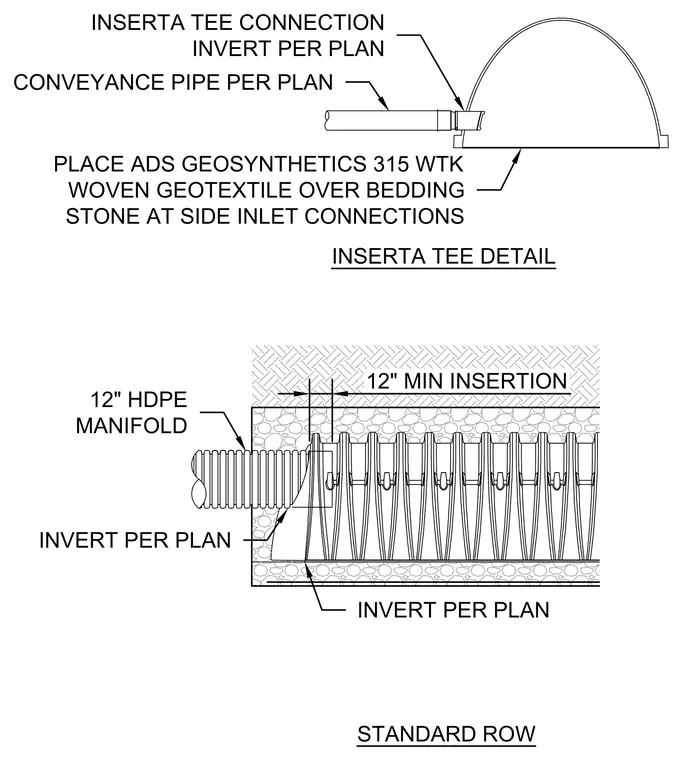

A conveyance pipe connects to a twelve-inch high-density polyethylene manifold using an Inserta Tee fitting with the invert sized per plan. A minimum twelve-inch insertion is maintained into the manifold profile. Ads Geosynthetics 315 WTK woven geotextile is placed over the bedding stone at all side inlet connections.
INVERT PER PLAN INVERT PER PLAN STANDARD ROW 12" HDPE MANIFOLD 12" MIN INSERTION INSERTA TEE DETAIL PLACE ADS GEOSYNTHETICS 315 WTK WOVEN GEOTEXTILE OVER BEDDING STONE AT SIDE INLET CONNECTIONS CONVEYANCE PIPE PER PLAN INSERTA TEE CONNECTION INVERT PER PLAN
