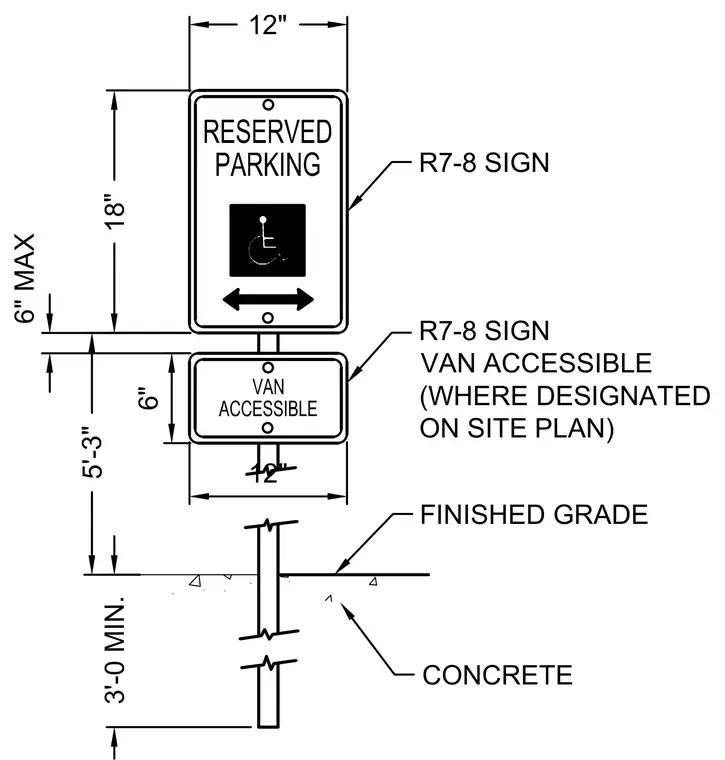

An R7-8 reserved parking sign measuring 12 inches by 18 inches mounts above an optional van accessible plaque measuring 12 inches by 6 inches. The support post extends down to a minimum depth of 3 feet into a concrete footing below finished grade. The bottom of the van accessible plaque maintains a height of 5 feet 3 inches above the finished grade. The vertical spacing between the main sign and the auxiliary plaque is limited to a maximum of 6 inches.
RESERVED PARKING 12" 18" 5'-3" 3'-0 MIN. VAN ACCESSIBLE 12" 6" R7-8 SIGN FINISHED GRADE R7-8 SIGN VAN ACCESSIBLE (WHERE DESIGNATED ON SITE PLAN) CONCRETE 6" MAX
