The entrance consists of a wash-down pad measuring fifteen feet minimum by fifty feet minimum, constructed with a nine-inch thick layer of three to six-inch rock over a one-half to three-quarter-inch filter layer. Filter fabric is installed directly below the gravel over the subgrade. Runoff from the pad drains toward an adjacent swale connected to a sedimentation basin. A construction traffic sign must be placed adjacent to the entrance designating it as the sole entry and exit point for site traffic.

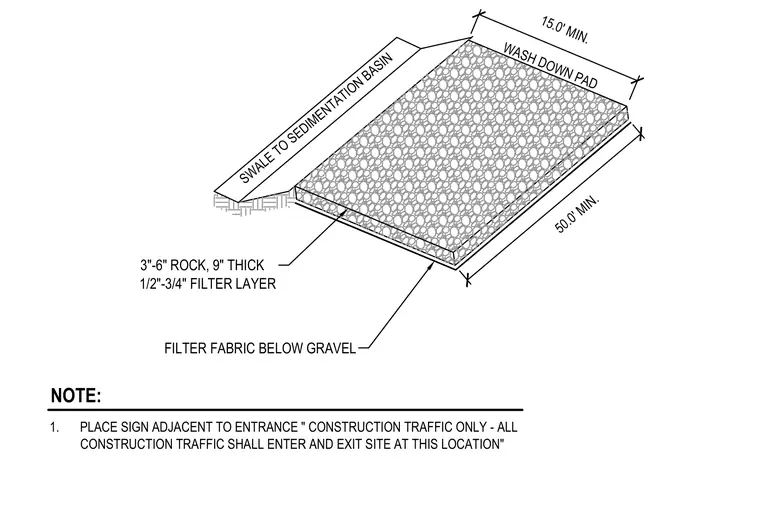

SWALE TO SEDIMENTATION BASIN 50.0' MIN. WASH DOWN PAD 15.0' MIN. 3"-6" ROCK, 9" THICK 1/2"-3/4" FILTER LAYER FILTER FABRIC BELOW GRAVEL 1. PLACE SIGN ADJACENT TO ENTRANCE " CONSTRUCTION TRAFFIC ONLY - ALL CONSTRUCTION TRAFFIC SHALL ENTER AND EXIT SITE AT THIS LOCATION" NOTE:
