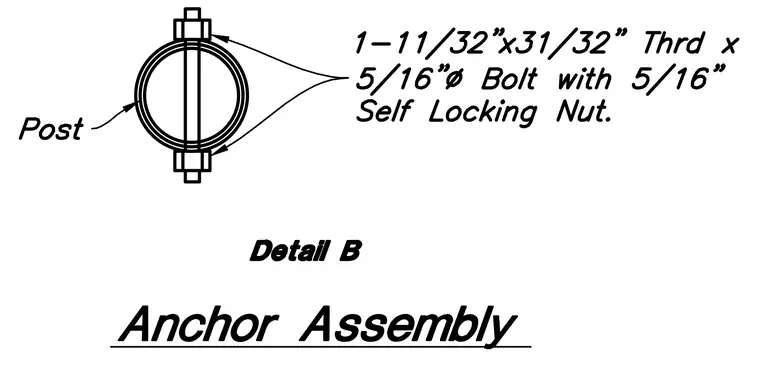

A cylindrical post is secured with a five-sixteenth-inch diameter through-bolt and five-sixteenth-inch self-locking nuts. The fastener features a one and eleven-thirty-seconds-inch by thirty-one-thirty-seconds-inch threaded section passing through the post.
